Redirect Configuration

In this section, you can learn how to direct traffic from a specific URL to another within the Page Rules area. To begin, navigate to the Page Rules section of your user panel under the VergeCloud CDN service and select the option to Add New Rule.

Glossary

• Redirect: A method for sending users from one URL to another.
• Page Rules: Settings that allow you to modify how your website behaves.
• HTTP Status Codes: Numeric codes that represent the result of a server's response to a browser request.

Real Usage Scenarios

A practical example would be if your website has moved to a new domain and you want to ensure that visitors using the old URL are seamlessly redirected to the new address.

Field/Option Descriptions

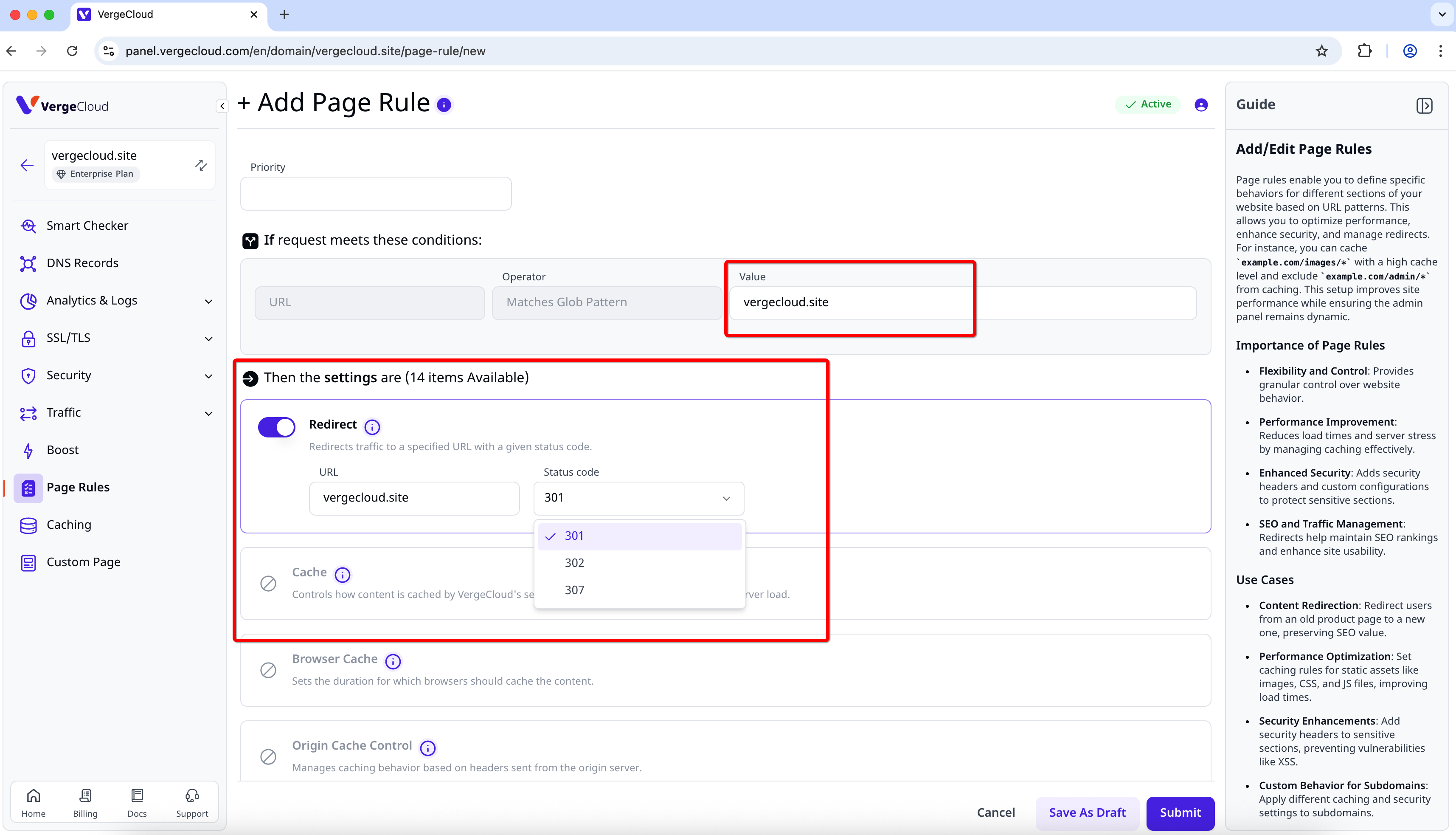

1. URL: In the new window that appears, enter the URL you wish to redirect (for example, vergecloud.site).

2. Redirect Option: Choose the Redirect option from the dropdown menu.

3. Status Activation: Activate the status and select one of the following codes: 301, 302, or 307.





HTTP Status Codes Explained

• Code 301 (Permanent Redirect): This indicates that the URL has permanently changed to a new one. It informs search engines that the new URL replaces the old one indefinitely. If you intend to retain the old URL while making a temporary change, utilize the 302 redirect code instead.
• Code 302 (Temporary Redirect): This code signifies a temporary move, suggesting that while the content is accessible, it is located at a different URL. Use this when you want to redirect visitors temporarily without altering the search engines' indexing of the original URL.
• Code 307: Similar to the 302 code, but specifically for HTTP/1.1. This code ensures that the request method remains unchanged during the redirection process, while the 302 code may alter the request method from POST to GET in HTTP/1.0.

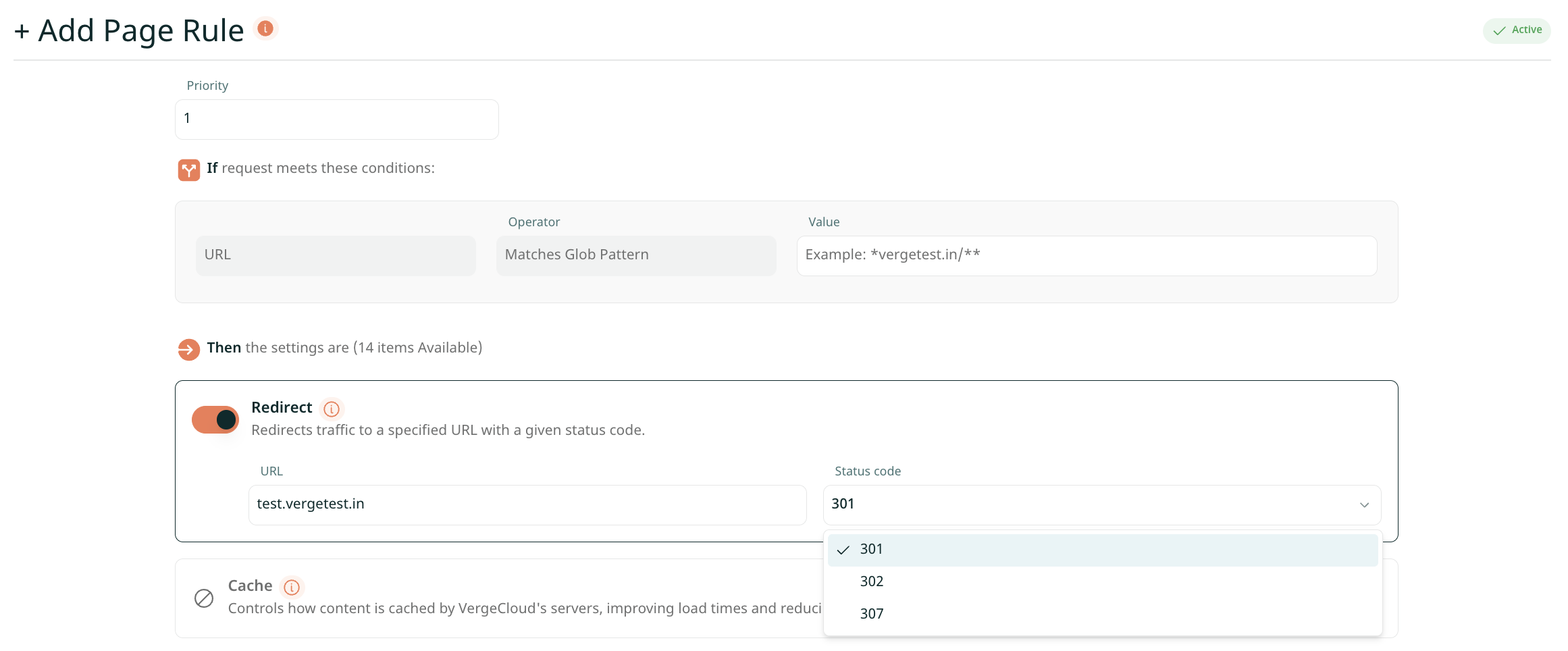

Once you have selected your code, input the domain you wish to redirect from in the URL section and click on Create.

Advanced Redirect Settings

When setting up redirects, VergeCloud allows you to use patterns in Page Rule URL and variables in Redirect URL to create flexible rules that cover multiple URLs. This is especially helpful when you want to preserve the path or filename during redirection.

How Patterns Work

A pattern uses the * (asterisk) symbol to match one or more segments of the URL. Each asterisk represents a capturable variable in the incoming request.

• sample.com/* matches sample.com/page, sample.com/docs/index.html, etc.
• *.sample.com matches any subdomain like blog.sample.com, shop.sample.com
• sample.com/assets/*.jpg matches image files like sample.com/assets/banner.jpg

How Variables Work

Each * in the pattern corresponds to a numbered variable that can be used in the URL input at the rewrite section. These variables are represented as $1, $2, and so on, in the order they appear.

• A pattern of sample.com/* with destination newsample.com/$1 means:

  • sample.com/page → newsample.com/page
  • sample.com/docs/index.html → newsample.com/docs/index.html
• A pattern of *.sample.com/* with destination $1.newsample.com/$2 means:

  • blog.sample.com/article → blog.newsample.com/article
  • shop.sample.com/item/123 → shop.newsample.com/item/123

Important Notes

• Query strings (?key=value) are not automatically passed to the destination.
• If no * is used in the source pattern, then no variables are available for the destination.
• You can combine multiple wildcards in both the source and destination to create complex redirect behavior.

This approach ensures that visitors are redirected to the correct equivalent location on the new domain or subdomain, preserving structure and improving user experience.

Testing and Validation

After configuring your redirect, to verify its functionality, you can open a browser and navigate to sample.com/example.html. You should be automatically redirected to newsample.com/example.html.
